Automotive Adhesive Applications – Every Vehicle, Every Climate
CHEMPU engineers high-performance polyurethane solutions designed for diverse automotive adhesive applications. From high-speed robotic OEM windshield assembly lines to rugged off-highway cabins operating at -40°C, our specialized direct glazing formulations guarantee zero-sag positioning, permanent elastomeric bonding, and compliance with the most stringent global vehicle safety standards.
Automotive Adhesive Applications by Vehicle Type
Different vehicle architectures subject windshields and stationary glass to widely diverging dynamic stresses. Discover how CHEMPU tailors structural direct glazing solutions across all four major automotive adhesive applications categories.
Passenger Cars & Light Vehicles
Engineered for high-volume automotive production and rapid aftermarket glass replacement (AGR). Combines primerless adhesion to ceramic frits, low VOC odorless formulation, and accelerated safe drive-away times.
- Drive-Away Safety: 30 min to 2 hours FMVSS 212/208 compliant
- Primerless Simplicity: Direct bonding without black primer on pristine frits
- Comfort & Green: Ultra-low VOC, non-conductive (safe for integrated ADAS/antennas)

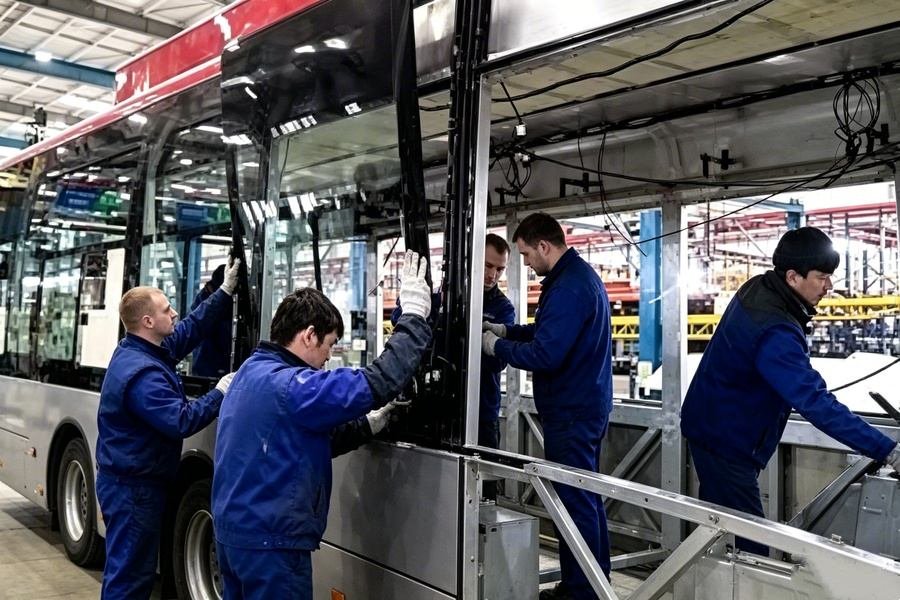

Commercial Buses & Heavy Trucks
Large, vertically oriented panoramic windshields demand ultra-high initial green strength and zero gravitational slippage. High-modulus chemistry reinforces cab torsional rigidity and dampens road harmonics.
- 0mm Gravitational Sag: Eliminates clamping jigs on massive 4m² glass
- Torsional Reinforcement: Shear strength ≥ 2.5 MPa to absorb chassis twisting
- Packaging Variety: 310ml cartridge, 400ml/600ml sausage, 200L bulk drum

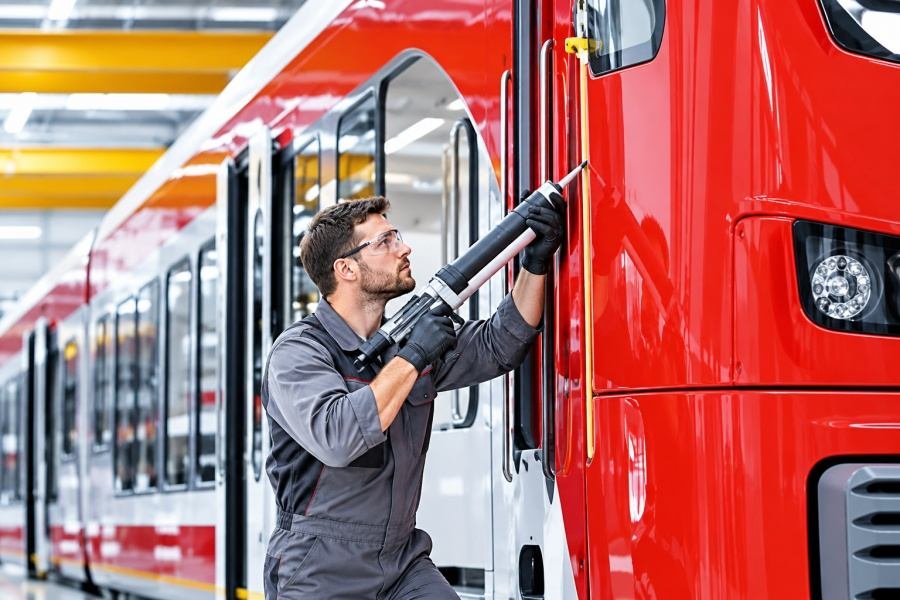

Rail Transit & High-Speed Trains
High-speed rolling stock encounters cyclic alternating pressure waves when entering tunnels at 350 km/h. Formulated with certified flame retardancy, exceptional elasticity, and long-term dynamic fatigue resistance.
- Fire & Smoke Standards: Tested to DIN 5510-2 / EN 45545 fire safety criteria
- Aerodynamic Load Absorption: Withstands ±6 kPa tunnel suction pulses
- 30-Year Joint Durability: Superior thermal aging and elastomeric memory
Specialty & Off-Highway Machinery
Mining excavators, harvesters, cranes, and port marine machinery operate in punishing dust, continuous vibration, chemical exposure, and temperature extremes from -40°C arctic frost to +90°C desert heat.
- Rugged Vibration Damping: Elongation at break ≥ 450% prevents joint crack
- Wide Operating Window: Retains full elasticity from -40°C to +90°C
- Chemical & Salt Spray Resistance: Immune to diesel, hydraulic mist & fertilizers
One Adhesive Family, Four Demanding Environments
While mechanical constraints diverge across vehicle types, CHEMPU's polyurethane adhesive automotive applications leverage a shared technological foundation: high-purity prepolymers, advanced catalyst kinetics, and molecular moisture-curing networks that never embrittle.
Extreme -40°C to +90°C Window
Engineered polyurethane matrix retains elastic elongation (≥400%) in Siberian sub-zero freezes and resists thermal creep under intense tropical windshield glass heating up to 90°C.
Primerless Bonding Speed
Silane-functionalized prepolymers create direct covalent bonds with automotive ceramic frits, cutting labor by 30%, eliminating primer evaporation wait times, and preventing operator omission errors.
Zero Gravitational Sag
Proprietary thixotropic fillers ensure instant stand-up bead geometry. Technicians mount massive vertical glass sheets without slippage or the need for cumbersome positioning clips.
Comprehensive Automotive Application Matrix
Compare requirements, standards, and recommended CHEMPU formulas| Application Category | Primary Operating Demands | Recommended CHEMPU Adhesive | Key Technical Specs | Testing & Compliance Standards |
|---|---|---|---|---|
| Passenger Cars & SUVs | Rapid drive-away, low VOC, primerless speed, ADAS non-conductivity | PA-1453 PA-1601F | SDAT: 30 min - 2h | Tensile: ≥ 6.0 MPa | VOC: Near zero | FMVSS 212/208, ISO 9001 |
| Buses & Heavy Trucks | Zero sag on vertical glass, torsional cab stiffness, vibration damping | PA-160F PA-1453 | Sag: 0 mm | Shear: ≥ 2.5 MPa | Elongation: ≥ 450% | QC/T 642, ISO 14001 |
| Rail Transit & High-Speed | Tunnel suction pulses, fire & smoke safety, 30-year joint durability | PA-145N | Flame Retardant | High Modulus | Suction: ±6 kPa | DIN 5510-2, EN 45545 |
| Specialty & Off-Highway | Impact shocks, extreme weather (-40~+90°C), UV & chemical resistance | PA-1453 PA-1452 | Temp: -40~+90°C | Shore A: 55-65 | Elastic recovery: >90% | Salt spray 1000h, Weatherometer |

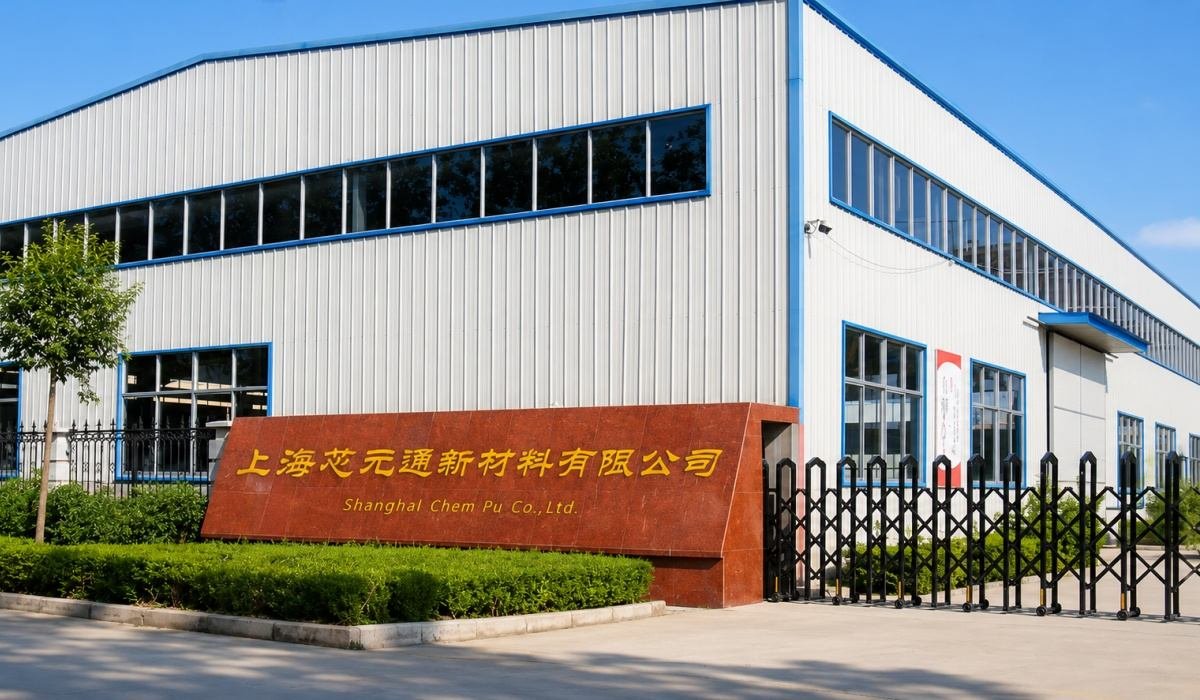

Manufactured to Global OEM Standards in Shanghai
CHEMPU operates a modern chemical manufacturing plant in Shanghai equipped with fully automated continuous synthesis reactors and nitrogen-sealed filling lines. With dedicated subsidiaries in Germany, the United States, and Vietnam, we deliver high-reliability automotive adhesives to vehicle manufacturers and Tier-1 glass distributors worldwide.
Not Sure Which Adhesive Fits? Use the Selection Guide
Selecting the correct bonding chemical prevents costly in-service seal failures, windshield fractures, and assembly delays. Use our 3-step decision roadmap or consult our windshield adhesive selection guide.
Identify Vehicle Type & Glass Weight
Determine the vehicle class, windshield angle, and glass dimensions. Massive vertical panes require high-thixotropy formulas to prevent slippage before cure.
- Passenger car / SUV (tilted aerodynamically)
- Bus / heavy commercial truck (vertical large pane)
- Rail train / specialized construction machinery
Define Operational Demands & SDAT
Assess factory line speed versus aftermarket repair constraints. Review required Safe Drive-Away Time (SDAT), flammability ratings, and vibration profiles.
- Fast drive-away: 30 min vs. standard 1-2 hours
- Fire standards: DIN 5510-2 / EN 45545 for rolling stock
- Severe outdoor thermal cycling (-40°C to +90°C)
Match Optimal CHEMPU Formulation
Select from our specialized PA series formulations engineered for maximum adhesion, zero sag, and regulatory compliance.
- PA-1453: Premier universal primerless direct glazing
- PA-160F: High-viscosity zero-sag for heavy fleets
- PA-145N: Flame-retardant rail transit engineering
Automotive Adhesive Applications FAQ
Find quick answers regarding product selection, curing kinetics, international testing standards, and bulk procurement.
What are automotive adhesive applications?
Which adhesive is recommended for passenger car windshields?
Which adhesive is best for heavy bus and commercial truck glass?
What adhesive specifications are required for rail transit applications?
Which adhesive withstands the harsh conditions of specialty vehicles?
Do you supply automotive adhesive applications for OEM and aftermarket?
What temperature range do CHEMPU automotive adhesives cover?
Can I get custom technical advice for unique automotive adhesive applications?
Have a custom engineering requirement or need substrate lap-shear testing reports?
Tell Us Your Application, We'll Match the Adhesive
Whether you are ramping up a robotic passenger car OEM assembly plant, maintaining a nationwide long-haul bus fleet, or outfitting extreme mining excavators, CHEMPU provides the right formula, technical test verification, and containerized export logistics.
To fast-track your recommendation, please mention:
1. Vehicle Type: Passenger Car, Commercial Bus/Truck, Rail Transit, or Specialty Equipment
2. Glass Area & Installation Angle: Vertical, Slanted, Curved, or Panoramic
3. Production Cycle or Safe Drive-Away Target: Automated Line (Min) or Field Repair (Hour)
4. Packaging Requirement: 310ml Cartridge, 400ml/600ml Sausage, or 200L Bulk Drum
