PA-160N High Viscosity Auto Glass Adhesive – Holds Strong, No Sag
Specifically engineered for vertical, inclined, and overhead vehicle glass installations. PA-160N high viscosity auto glass adhesive features strong green strength, 10–60 minute tack-free working time, 400% elongation, and 98% solid content to eliminate glass slippage without mechanical clamps.
PA-160N High Viscosity Auto Glass Adhesive Specifications
Complete verified laboratory parameters from CHEMPU Technical Data Sheet (TDS). High viscosity thixotropy ensures immediate glass positioning without bead slumping.

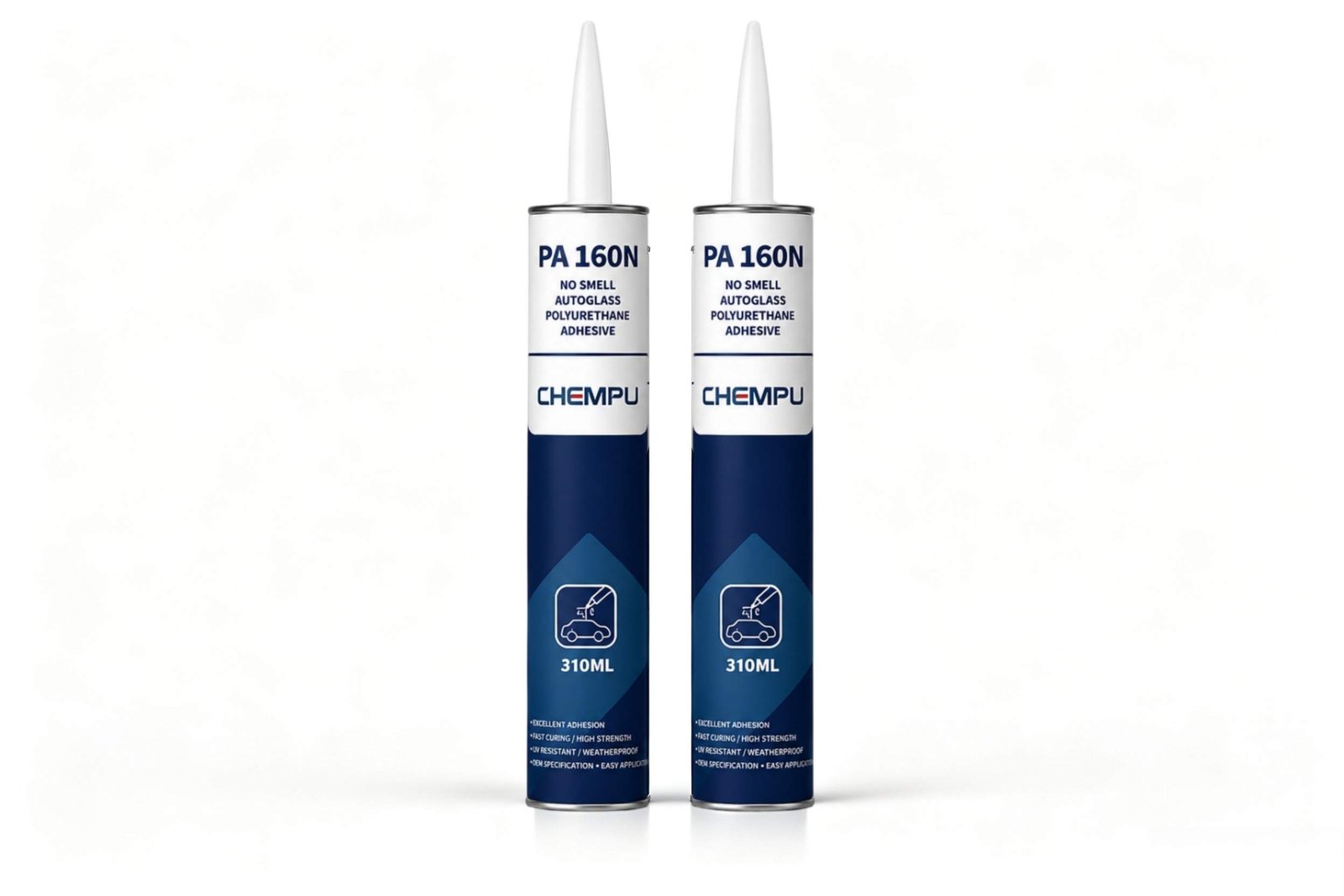

PA-160N (Ultra No Sag) · 310ml Cartridge / 400ml / 600ml Sausage
| Property / Test Item | Technical Specification (TDS Verified) |
|---|---|
| Appearance | Black homogeneous viscous paste |
| Sag Resistance | Ultra No Sag (Zero bead slumping on vertical surfaces) |
| Density (g/cm³) | 1.35 ± 0.05 |
| Tack Free Time | 10 – 60 minutes (23°C, 50% RH) |
| Curing Speed | 3.0 mm / 24 hours |
| Tensile Strength | ≥ 6.0 MPa |
| Elongation at Break | ≥ 400% (High elasticity & damping) |
| Hardness (Shore A) | 60 ± 5 |
| Shear Strength | ≥ 4.0 MPa |
| Tear Strength | ≥ 10.0 N/mm |
| Non-volatile Content | ≥ 98% (Ultra-high solid content, minimal shrinkage) |
| Application Temperature | +5°C to +35°C |
| Service Temperature | −40°C to +90°C |
| Shelf Life | 9 Months (dry, 5°C ~ 25°C) |
No Sag Performance for Vertical & Overhead Glass
Eliminates the risks of bead slumping, glue run-off, and heavy windshield displacement on vertical vehicle pillars and overhead panoramic roof systems.
Vertical Bus & Truck Windscreens
Upright front windscreens in commercial trucks and transit buses impose severe downward shear gravity on uncured adhesive. PA-160N's ultra-high thixotropy holds heavy glass panels firmly without downward drift.
Panoramic Sunroofs & Overhead Glass
Horizontal and overhead roof module installation demands adhesives that never drip or string onto car interiors. PA-160N maintains crisp triangular beads during upside-down application and roof panel placement.
Slanted Side Windows & Specialty Vehicles
Agricultural machinery cabs, construction excavators, and rail locomotive curved side windows present complex bonding angles. PA-160N provides immediate green grab and high shear security across all contours.
High Viscosity + High Initial Tack = Zero Sag Installation
When installing heavy panoramic or commercial vehicle glass, low-viscosity adhesives deform under self-weight. PA-160N balances high shear-thinning extrusion ease with instantaneous recovery of high standing viscosity.
Advanced Thixotropic Polyurethane Matrix
Extrudes smoothly through professional pneumatic guns under shear, then immediately locks into place with zero slump or run-off.
Immediate Green Grab
High initial tack holds the glass in the exact mounted position, drastically reducing reliance on alignment suction cups and exterior tape.
98% High Solid Content
Near-zero solvent shrinkage ensures the bead retains full contact thickness and gap-filling geometry throughout the 24-hour cure cycle.
400% Elastic Shock Absorption
Provides permanent flexibility to absorb extreme chassis twisting, heavy vibration, and thermal expansion cycles from −40°C to +90°C.
Engineered for Demanding Installations by Top 5 Maker
CHEMPU is recognized among the Top 5 auto glass adhesive manufacturers in China, operating 5 automated chemical manufacturing bases with over 500,000 tons annual capacity. Supplying premier glass processors Fuyao and Xinyi, our PA-160N meets ISO 9001:2015 and ISO 14001:2004 international quality benchmarks.
High Viscosity Auto Glass Adhesive FAQ
Common technical questions regarding high viscosity polyurethane adhesives, no sag performance, and large glass bonding.
What is high viscosity auto glass adhesive?
Why choose no sag windshield adhesive?
How fast does PA-160N cure?
Is PA-160N primerless?
What is the elongation of PA-160N?
Can high viscosity adhesive be used for vertical glass?
Is PA-160N suitable for large windshield installation?
Can I get high viscosity windshield adhesive wholesale?
Related High-Performance Adhesives
PA-160F (Fast Cure)
1-Hour safe drive-away polyurethane adhesive engineered for rapid auto glass replacement and high workshop efficiency.
PA-1801 (High Modulus)
High modulus structural polyurethane sealant designed for enhanced torsional body rigidity and crash performance.
PA-1453 (Flagship Model)
Standard primerless polyurethane sealant with 4-hour drive-away time. Ideal for everyday passenger cars and fleet supply.
Need Reliable No-Sag Adhesives for Heavy Windshields?
Contact CHEMPU today to request free product samples of PA-160N, download the technical data sheet, or receive a factory-direct OEM quote for your brand.
