PA-1601F Fast Cure Windshield Adhesive – Back on the Road in 1 Hour
In auto glass replacement, workshop bay turnover is revenue. PA-1601F fast cure windshield adhesive delivers verified 1-hour safe drive-away time without compromising passenger crash protection. Engineered with 15-minute skinning, 8.0 MPa tensile strength, and 97% solid content for high-volume 4S centers and rapid repair shops.
PA-1601F Fast Cure Windshield Adhesive Specifications
Complete laboratory parameters from CHEMPU Technical Data Sheet (TDS). Rapid polymerization kinetics deliver 8.0 MPa ultimate tensile strength and 1-hour drive-away certification.

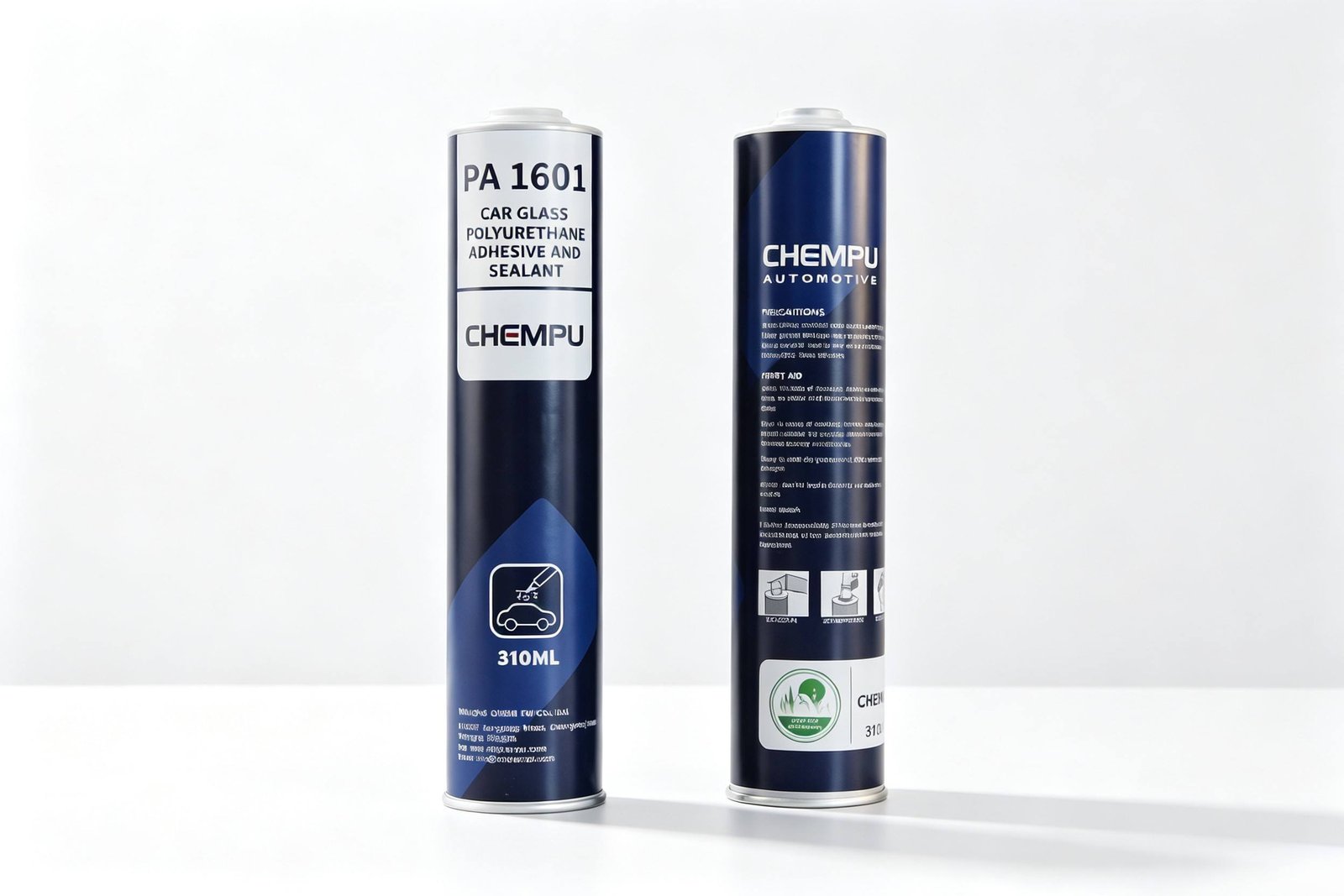

PA-1601F Fast Cure · 310ml Aluminum Cartridge / 400ml / 600ml Sausage
| Property / Test Item | Technical Specification (TDS Verified) |
|---|---|
| Appearance | Black homogeneous smooth paste |
| Safe Drive Away Time | 1 Hour (Dual airbag & FMVSS 212 compliant) |
| Density (g/cm³) | 1.35 ± 0.05 |
| Tack Free Time | 15 minutes (23°C, 50% RH) |
| Curing Speed | 3.2 mm / 24 hours |
| Tensile Strength | ≥ 8.0 MPa (Ultra-high structural cohesion) |
| Lap Shear Strength | ≥ 4.5 MPa |
| Tear Strength | ≥ 10.0 N/mm |
| Elongation at Break | ≥ 350% |
| Hardness (Shore A) | 60 ± 5 |
| Non-volatile Content | ≥ 97% |
| Application Temperature | +5°C to +35°C |
| Service Temperature | −40°C to +90°C |
| Shelf Life | 9 Months (dry, 5°C ~ 25°C) |
Built for Fast Repair Shops and 4S Dealerships
Every extra hour a repaired car sits occupying a workshop bay represents lost labor revenue, parking bottlenecks, and impatient customer complaints.
Fast Glass Replacement Centers
Mobile windshield vans and high-volume downtown repair centers promise "while-you-wait" service. PA-1601F allows customers to safely drive away just 60 minutes after glass fitting.
4S Dealership Service Centers
Authorized brand dealerships adhere to strict OEM return-to-service standards. PA-1601F provides OEM-grade 8.0 MPa tensile strength, meeting rigorous collision safety thresholds.
Emergency Vehicles & Commercial Fleets
Police cruisers, ambulances, and municipal utility trucks cannot afford days out of service. PA-1601F gets critical emergency response vehicles back on duty the very same hour.
The Science Behind 1-Hour Safe Drive Away
How can a single-component polyurethane adhesive be truly safe to drive in 60 minutes? PA-1601F utilizes an advanced catalyzed prepolymer matrix that rapidly builds green strength within the initial hour, satisfying full passenger crash retention standards.
Accelerated Latent Catalysis
Triggers rapid atmospheric moisture cross-linking upon extrusion while preserving a manageable 15-minute open working window for windshield alignment.
8.0 MPa Ultimate Cohesion
Exceeds standard 4.0 MPa adhesives by 100%, delivering unprecedented bond safety and dynamic rollover roof crush protection.
10.0 N/mm Superior Tear Resistance
High tear and peel strength withstand severe chassis torsion, high-speed wind buffeting, and heavy road shock vibration.
97% High Non-Volatile Solid Content
Near-zero solvent shrinkage ensures the adhesive bead maintains complete contact thickness and gap-filling integrity throughout curing.
Fast Cure, Factory Direct from Top 5 Manufacturer
CHEMPU is ranked among the Top 5 auto glass adhesive manufacturers in China, operating 5 automated chemical manufacturing plants with over 500,000 tons annual capacity. Supplying global automotive glass leaders Fuyao and Xinyi, our PA-1601F complies with ISO 9001:2015 and ISO 14001:2004 international quality benchmarks.
Fast Cure Windshield Adhesive FAQ
Common technical inquiries regarding 1-hour safe drive away timing, crash safety compliance, and OEM bulk supply.
What is fast cure windshield adhesive?
How fast is PA-1601F fast cure windshield adhesive?
Is 1 hour drive away windshield adhesive safe?
Can I get fast cure windshield adhesive wholesale?
What is the difference between PA-1601F and PA-160F?
Does fast cure windshield adhesive work in cold weather?
What is the initial bonding strength of PA-1601F?
How to store fast cure windshield adhesive?
Related Fast-Cure & High-Strength Adhesives
PA-160F (Fast Cure)
1-Hour safe drive-away polyurethane adhesive for quick auto glass replacement, sharing our proven fast-cure chemistry.
PA-1453 (Flagship Model)
Flagship primerless polyurethane adhesive with 4-hour drive-away time. The global benchmark for high-volume windshield installation.
PA-1801 (High Modulus)
High modulus structural polyurethane sealant designed for enhanced torsional body stiffness and premium EV battery enclosures.
Need 1-Hour Fast Cure Auto Glass Adhesive Wholesale?
Contact CHEMPU today to request free product samples of PA-1601F, download full TDS/MSDS documents, or receive a factory-direct OEM quote for your brand.
